Cone Shape

View Larger Image

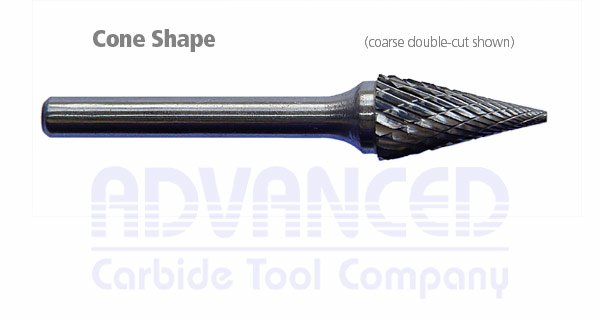

Cone Shape (SM)
TOOL NO.   HEAD DIA.   FLUTE LENGTH   SHANK DIA.   INCLUDED ABGLE
SM-1   1/4"   1/2"   1/4"   22°
SM-2   1/4"   3/4"   1/4"   14°
SM-3   1/4"   1"   1/4"   10°
SM-4   3/8"   5/8"   1/4"   28°
SM-5   1/2"   7/8"   1/4"   28°
SM-6   5/8"   1"   1/4"   31°


1/4" shanks are supplied standard unless ordered otherwise. 3/8" shanks are recommended on all Burs larger than 1/2" diameter.

View Larger Image

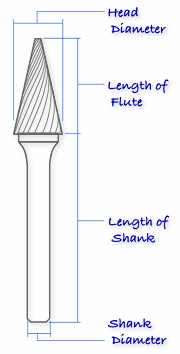

Cone Shape (SM)
