| TYPE OF CUT | RECOMMENDED USE | |||

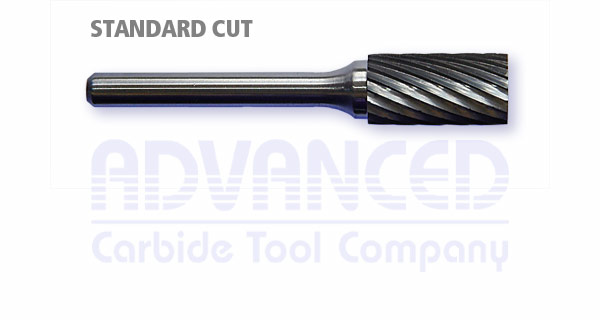

| Standard Cut |  |
STANDARD CUT is a general purpose tool designed for cast iron, copper, brass and other ferrous materials. It will give good material removal and good work piece finishes. | ||
| ||||

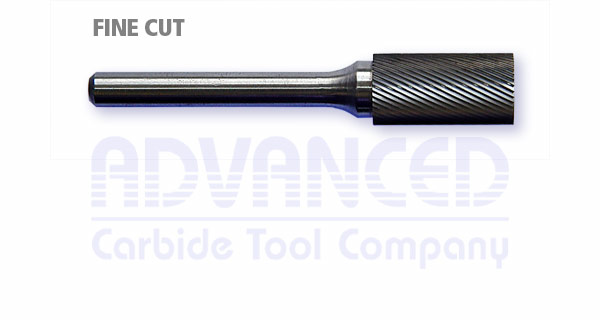

| Fine Cut |  |
FINE CUT improves finishes on hardened steel, stainless steel and cast iron. Operator control is improved. | ||
| ||||

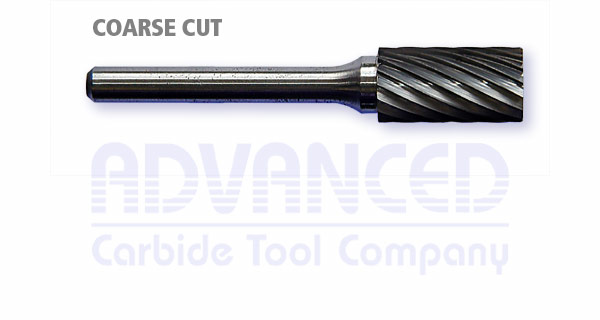

| Coarse Cut |  |
COARSE CUT is recommended for use on soft material such as copper, brass, aluminum, plastics, and rubber, where chip loading is a problem. | ||
| ||||

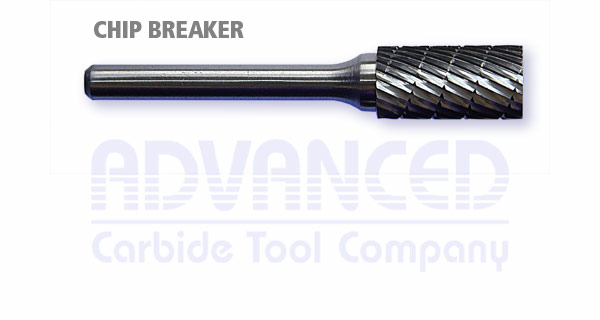

| Chip Breaker |  |
CHIP BREAKER CUT will reduce sliver size and improve operator control at a slightly reduced surface finish. |
||
| ||||

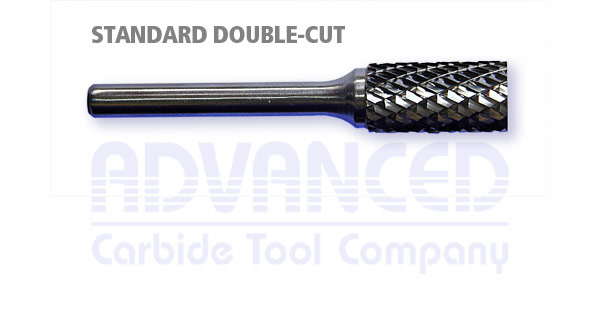

| Standard Double-Cut |
 |
STANDARD DOUBLE-CUT allows for rapid stock removal and better operator control. Chip size is reduced and tool speed can be slower than normal speeds. | ||
| ||||

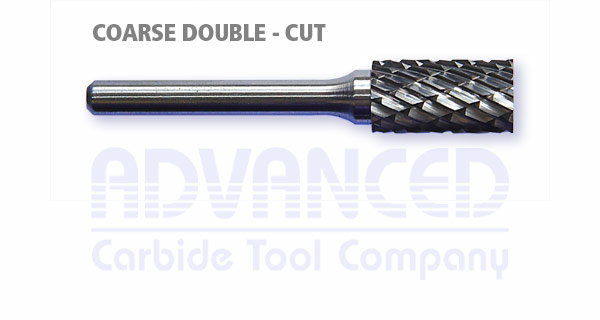

| Coarse Double-Cut |
 | COARSE DOUBLE-CUT is for fast stock removal in soft materials. Allows good operator control and produces small chips. | ||
| ||||

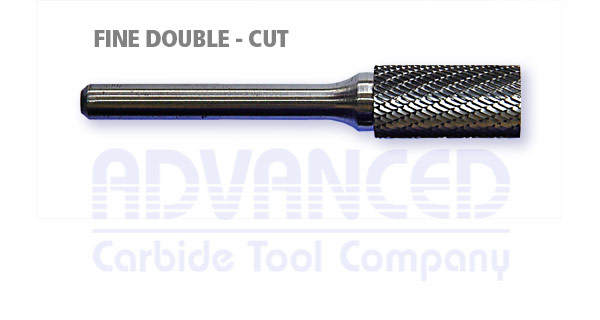

| Fine Double-Cut |
 |
FINE DOUBLE-CUT is very effective on heat treated and tough alloy steels. Chip size is reduced and it offers good operator control. | ||
| ||||

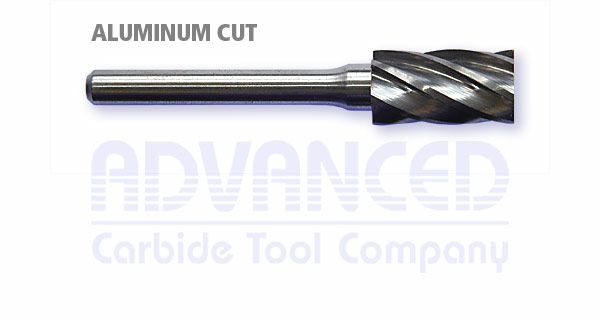

| Aluminum Cut |  |
ALUMINUM CUT is for use on non-ferrous and non-metallic materials. It is designed for rapid stock removal with minimum chip loading. | ||
| ||||

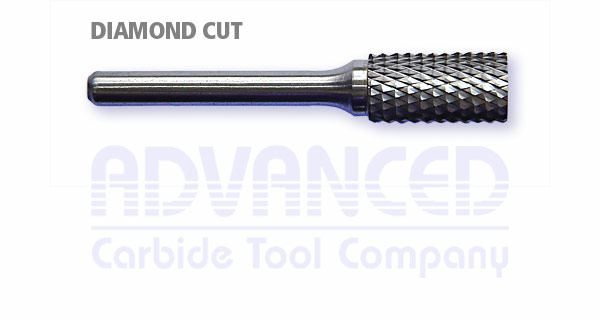

| Diamond Cut |  |
DIAMOND CUT is very effective on heat treated and tough alloy steels. It produces very small chips and good operator control. Surface finish and tool life is reduced. | ||
| ||||
