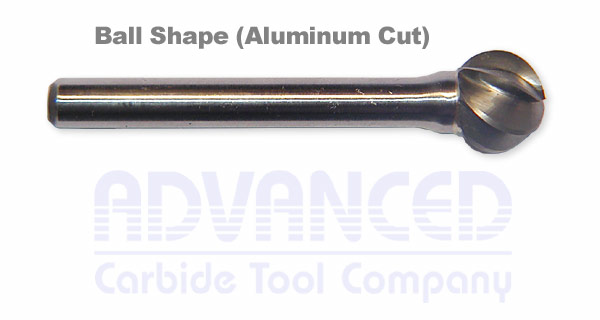

Ball Shape (Aluminum Cut)


View Larger Image
Aluminum Cut, Ball Shape (SD)
TOOL NO.   HEAD DIA.   FLUTE LENGTH   SHANK DIA
SD-1AL   1/4"   1/4"   1/4"
SD-3AL   3/8"   3/8"   1/4"
SD-5AL   1/2"   1/2"   1/4"
SD-6AL   5/8"   5/8"   1/4"
SD-7AL   3/4"   3/4"   1/4"

1/4" shanks are supplied standard unless ordered otherwise. 3/8" shanks are recommended on all Burs larger than 1/2" diameter. Metric shanks available on request.

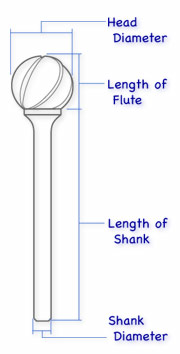

View Larger Image 		Aluminum Cut Ball Shape (SD)
